Overview

The Meta Camera API Integration sample is provided with full source code and demonstrates how Fusion & Video SDK can be used to stream Meta camera to remote users.

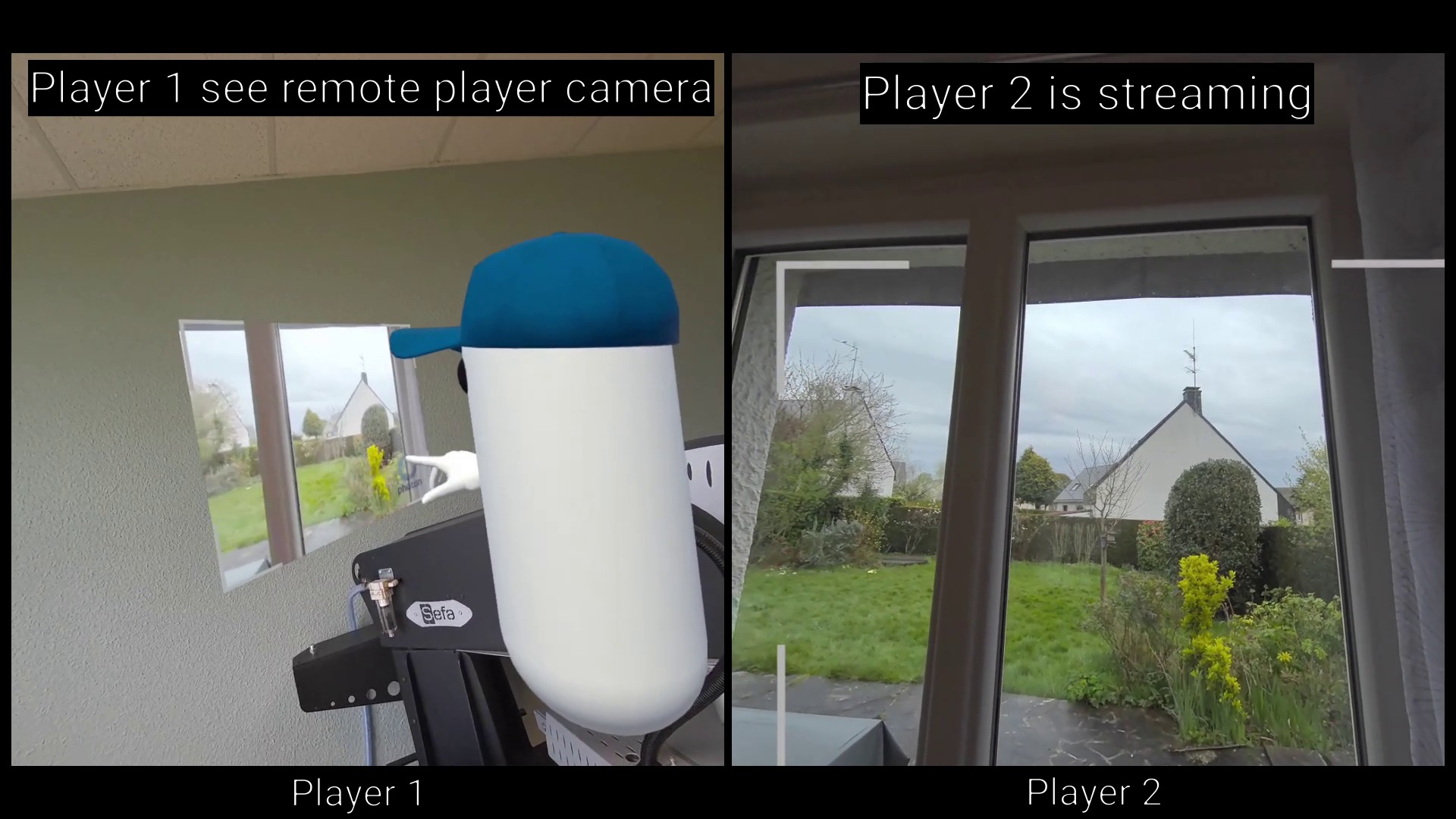

Each user can start streaming their Meta Quest camera by using a button on their watch. At this point, for remote users, a screen will appear in front of the avatar of the user streaming his camera.
In this way, this screen will act as a kind of window on the player's real environment, and remote players will be able to see this environment.
This can be particularly useful for remote support use cases.

Technical Info

This sample uses the Shared Authority topology,
The project has been developed with Unity 6, Fusion 2, Photon Voice/Video 2.58 and tested with the following packages :
- Meta XR Core SDK 74.0.0 : com.meta.xr.sdk.core
- Unity OpenXR Meta 2.1.0 : com.unity.xr.meta-openxr
Headset firmware version: 74.0.0

Before you start

To run the sample :

Create a Fusion AppId in the PhotonEngine Dashboard and paste it into the App Id Fusion field in Real Time Settings (reachable from the Fusion menu).
Create a Voice AppId in the PhotonEngine Dashboard and paste it into the App Id Voice field in Real Time Settings

Download

Version	Release Date	Download
2.0.5	Apr 04, 2025	Fusion Meta Camera Integration 2.0.5 Build 849

Folder Structure

The main folder /Meta-Camera-Integration contains all elements specific to this sample.

The folder /IndustriesComponents contains components shared with others industries samples.

The /Photon folder contains the Fusion and Photon Voice SDK.

The /Photon/FusionAddons folder contains the Industries Addons used in this sample.

The /Photon/FusionAddons/FusionXRShared folder contains the rig and grabbing logic coming from the VR shared sample, creating a FusionXRShared light SDK that can be shared with other projects.

The /XR folder contains configuration files for virtual reality.

Architecture overview

The Meta Camera API Integration sample is based on the same code base as that described in the VR Shared page, notably for the rig synchronization.

Aside from this base, the sample, like the other Industries samples, contains some extensions to the Industries Addons, to handle some reusable features like synchronized rays, locomotion validation, touching, teleportation smoothing or a gazing system.

Meta Quest Sample

The SampleSceneMetaQuestOnly is very simple, because the passthrough is enabled and there is no 3D environment.
Each user who connects is represented by an avatar.
Each user can decide to start/stop streaming their camera to the other players using the watch touchscreen.
When streaming is active, in addition to the text on the watch, visual feedback informs the user that they are sharing their camera.
Other remote players can then view this video stream on the screen that appears when the stream is launched.
This screen is located in front of the player sharing their camera, giving the impression of having a kind of portal onto their real environment.
Several players can share their camera simultaneously.

Network Connection

The network connection is managed by the Meta building blocks [BuildingBlock] Network Manager && [BuildingBlock] Auto Matchmaking.

[BuildingBlock] Auto Matchmaking set the room name and Fusion topology (Shared mode).

[BuildingBlock] Network Manager spawns the user prefab when the user joins the room and handles the Photon Voice connection.

Camera Permission

In order to access to the Meta Quest Camera, it is required to request the permissions.
This is managed by the WebCamTextureManager & PassthroughCameraPermissions components located on the WebCamTextureManagerPrefab game object.
Both scripts are provided by Meta in the Unity-PassthroughCameraAPISamples.
The WebCamTextureManagerPrefab scene game object is disabled by default and it is automatically activated by the VoiceConnectionFadeManager when the Photon Voice connection is established. It is required to prevent running several authorization requests at the same time.

Camera Streaming

To stream the camera, we use the Photon Video SDK. It is a special version of the Photon Voice SDK, including support for video streaming.
As the requirement is very similar to screen sharing, we are reusing the developments that were in the ScreenSharing Addon.

Camera Video Emission

Camera streaming is managed by the WebCamEmitter class of the ScreenSharing addon.
To start or stop the camera streaming, the NetworkWebcam component located on the player prefab calls the WebCamEmitter ToggleEmitting() method.

By default, the codec settings are H264 with 1024x768 resolution.

Camera Video Reception

The ScreensharingReceiver scene game object manages the reception of the camera stream.
It watchs for new voice connections on which the video stream will be transmitted. Upon such a connection, it creates a video player and a material containing the video player texture.
Then, with EnablePlayback(), it pass it to the ScreenSharingScreen which manages the screen renderer visibility : the screen will then change its renderer material to this new one.

The special case to be managed in this sample compared with the default screensharing addon is that there is a screen for receiving the video stream for each user.
So, ScreenSharingScreen & NetworkWebcam components are located on the networked player prefab, and the ScreenSharingEmitter passes in the communication channel user data the network object Id of the object containing the target screen.
This way, the ScreensharingReceiver looks for this object instead of using a default static screen.

NetworkWebcam :
- references itself on the WebCamEmitter as the networkScreenContainer,
- configures the screen mode (display or not of the video stream for the local player),
- determines whether players stream the camera by default when they join the room,

Watch Interaction

The user can start/stop the camera streaming using the watch.
For this feature, the watch button game object contains a Touchable component which calls the NetworkWebcam.ToggleEmitting() methods when the user touches the watch (thanks to the Toucher located on the MetaHardwareRig).

Please note that the prefab spawned for each user contains 2 watches:
- one for the hand model driven by the controllers
- one for the hand model driven by the finger tracking

The NetworkHandRepresentationManager enables/disables watches according to current hand trackind mode.

UI

The UI is managed by 2 scripts :
- WatchUIManager updates the text on the player's watch.
- ScreenSharingUIManager updates the UI in front of players.

Both scripts listen to the WebcamEmitter events in order to update the UI according to the streaming emitter status of the local player.
In addition, ScreenSharingUIManager implements the ScreenSharingScreen.IScreenSharingScreenListener interface so that UI for remote players can be updated when they start/stop streaming their camera (PlaybackEnabled() && PlaybackDisabled() methods)

Used XR Addons & Industries Addons

To make it easy for everyone to get started with their 3D/XR project prototyping, we provide a few free addons.
See XR Addons for more details.
Also, we provide to our Industries Circle members a comprehensive list of reusable addons.
See Industries Addons for more details.

Here are the addons we've used in this sample.

XRShared

XRShared addon provides the base components to create a XR experience compatible with Fusion.
It is in charge of the players' rig parts synchronization, and provides simple features such as grabbing and teleport.

See XRShared for more details.

Voice Helpers

We use the VoiceHelpers addon for the voice integration.

See VoiceHelpers Addon for more details.

We use the ScreenSharing addon to stream the Meta Quest Camera.

See ScreenSharing Addon for more details.

Meta Core Integration

We use the MetaCoreIntegration addon to synchronize players' hands.

See MetaCoreIntegration Addon for more details.

XRHands synchronization

The XR Hands Synchronization addon shows how to synchronize the hand state of XR Hands's hands (including finger tracking), with high data compression.

See XRHands synchronization Addon for more details.

TouchHover

We use the TouchHover addon to allow user interactions with the watch button.

See TouchHover Addon for more details.

Feedback

We use the Feedback addon to centralize sounds used in the application and to manage haptic & audio feedbacks.

See Feedback Addon for more details.

3rd Party Assets and Attributions

The sample is built around several awesome third party assets:

Oculus Integration
- Oculus Lipsync
- Oculus Sample Framework hands
Sounds
- nathangibson-Universal UI Soundpack
