Setup


Available in the Gaming Circle and Industries Circle
Circle

Installation

  1. (Windows only) Unblock Photon-Quantum-X.X.X.Plugin-SDK.zip by right-click > Properties > Unblock before unzipping it.
  2. Unzip the archive into a folder inside or next to the Quantum Unity project (Quantum tools will auto-detect the location).

MyQuantumProject
├─Assets
├─Library
├─..
└─PluginSDK

Or

MyQuantumProject
├─Assets
├─Library
└─..
PluginSDK

  1. (Running local Photon Server) Download and copy a Photon Server license from the Photon dashboard into the Photon.Server/deploy_win/bin.
    PS: only Circle membership owners have access to the license file.

Testing The Server Plugin

  • Open the Quantum.Plugin.Custom.sln in Visual Studio or Rider, set the Quantum.Plugin.Custom.Stock as start-up project and ignore that other project may file to compile;
  • Press F5 to start the Photon-Server;
  • Open the game server log file under Photon.Server\deploy_win\log\GSGame.log;
  • Open the Unity project, select PhotonServerSettings.asset and press the Local Name Server button;
  • Start an online game using the Quantum Menu.

Testing Server Simulation

  • Select the QuantumDotnetProjectSettings asset in Unity and folders that contain simulation code, if any is missing;
    • For example Assets\Photon\QuantumAsteroids\Simulation;

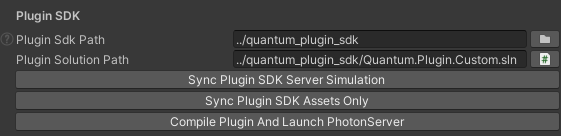

  • Select the QuantumDotnetBuildSettings asset and press Detect Plugin SDK. If this fails, select the folder (that contains the Photon.Server folder) manually;

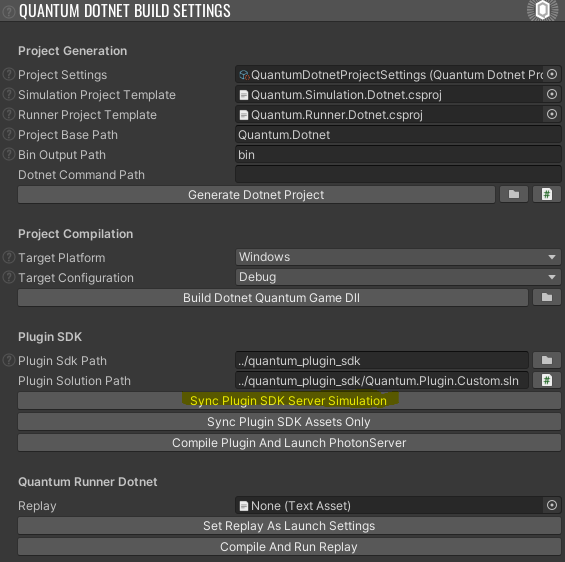

  • Select the QuantumDotnetBuildSettings asset and press Sync Plugin SDK Server Simulation. This step builds the non-Unity simulation dll, exports the Quantum Unity DB and copies the LUT files:
    • Libraries to the Lib folder;
    • Assets to Photon.Server\deploy_win\Plugins\QuantumPlugin3.0\bin\assets;
  • Open the Quantum.Plugin.Custom.sln in Visual Studio or Rider;
    • Set the Quantum.Plugin.Custom.Sample.ServerSimulation project as the start-up project;
    • Press F5 to start the Photon-Server;
    • Open the game server log file under Photon.Server\deploy_win\log\GSGame.log;
  • Open the Unity project, select PhotonServerSettings.asset and press the Local Name Server button;
  • While selecting the PhotonServerSettings.asset change the Auth Mode to Auth Once;
  • Start an online game using the Quantum Menu.
Auth Once

SDK Content

Lib Folder

The Lib folder includes all dependencies required to compile and run the Quantum Photon Server plugin.
The PhotonHivePlugin.dll for example is the interface for general Photon Server plugins. Quantum.Deterministic.Plugin.dll, Quantum.Deterministic.Server.dll and Quantum.Deterministic.Server.Interface.dll are the main libraries of the Quantum plugin. Quantum.Deterministic.dll and Quantum.Log.dll are usually replaced by the libraries of custom simulation build (from Unity).

Photon.Server Folder

The folder includes the local Photon Server. The bin folder has the Photon.Server executables, LoadBalancing and NameServer has the server code and Plugins has the server plugins. The log folder contains the server logs (e.g. the game server log GSGame.log).

The plugin configuration file LoadBalancing\GameServer\bin\plugin.config includes the local configuration key value store that online servers get from the Photon Dashboard.

The custom plugin libraries will be outputted to Plugins\QuantumPlugin3.0\bin. This is also the folder that is uploaded to the Photon Enterprise cloud in the end.

Quantum.Plugin.Custom.* Folders

These folders contain sample projects for a custom Quantum plugin (see next section).

Plugin Samples

The Quantum.Plugin.Custom.sln comes with multiple sample projects. Select one as a start-up project to be able to start it with F5.

Selecting a Project

See in the launchSettings.json how F5 will start a Photon Server:

The shared csproj file Quantum.Plugin.Shared.csproj.include is used in each project to support basic integration tasks like:

  • Copying the output to the destination folder: Photon.Server\Plugins\QuantumPlugin3.0\bin;
  • Zipping the plugin to prepare for Photon Cloud upload;
  • Checking for a license file.

Stock Sample

This sample is a blank slate which only consists of a custom DeterministicPluginFactory which is responsible to instantiate the required DeterministicPlugin. It will just instantiate the unmodified base plugin object.

C#

public override DeterministicPlugin CreateDeterministicPlugin(IPluginHost gameHost, String pluginName, Dictionary<String, String> config, IPluginLogger logger, ref String errorMsg) {
  return new DeterministicPlugin();
}

HTTP Sample

In some situations, you may need to query an external service to get some information or to perform some action (such as giving a player's account rewards).

This sample is a slightly more advanced version of the stock plugin. It includes a custom DeterministicPluginFactory and a custom DeterministicServer called QuantumCustomServer. This class overrides some of the base plugin methods to add custom behavior (HTTP calls in this case).

The custom server utilizes the HTTPExample class to perform a simple HTTP GET request to a public API. The HTTPExample class is a simple wrapper around the PluginHost's HTTP calls.

C#

HttpExample.SendAsync(host, result => {
    if (result) {
        Log.Info("HTTP Asyncronous Response: Success");
    } else {
        Log.Info("HTTP Asyncronous Response: FAILED");
    }
});

Server Simulation Sample

This sample is the same as the Stock sample but includes a Server Simulation.

In order to do this, the instance of DeterministicServer created is also provided with a DotNetSessionRunner in its constructor.

To compile this project all steps from the section Testing Server Simulation have to be completed first.

C#

public override DeterministicPlugin CreateDeterministicPlugin(IPluginHost gameHost, String pluginName, Dictionary<String, String> config, IPluginLogger logger, ref String errorMsg) {
  var sessionRunner = new DotNetSessionRunner {
    AssetSerializer = new QuantumJsonSerializer()
  };

  return new DeterministicPlugin(new DeterministicServer(sessionRunner));
}

The DotNetSessionRunner is a simple implementation of the ISessionRunner interface that allows the Quantum simulation to be run outside of Unity.

The QuantumJsonSerializer is used to serialize and deserialize the AssetDB.

Events and Callbacks from Server Simulation

It is possible to, from the custom plugin, react to Events (defined and triggered in the simulation code) and Callbacks.

This can be achieved that by getting the EventDispatcher and CallbackDispatcher from the DotNetSessionRunner and subscribing to the desired events and callbacks.

C#

private void SubscribeToEvents(DotNetSessionRunner sessionRunner) {
    var eventDispatcher = (EventDispatcher)sessionRunner.EventDispatcher;

    eventDispatcher.Subscribe<EventFoo>(this, OnEventFoo);
}

private void OnEventFoo(EventFoo foo) {
    // Do something with the event
}

C#

private void SubscribeToCallbacks(DotNetSessionRunner sessionRunner) {
    var callbackDispatcher = (CallbackDispatcher)sessionRunner.CallbackDispatcher;

    callbackDispatcher.Subscribe<CallbackGameStarted>(this, c => Log.Info("Game Started"));
}

Further Readings

The Quantum custom plugin is based of Photon-Server V5 and follows the workflow described in the Photon Server docs. Dive into these docs for further reading: Photon-Server V5 Step by Step Guide

To upload the plugin to the Photon Enterprise cloud the following tutorial is helpful: Enterprise Plugin Setup
